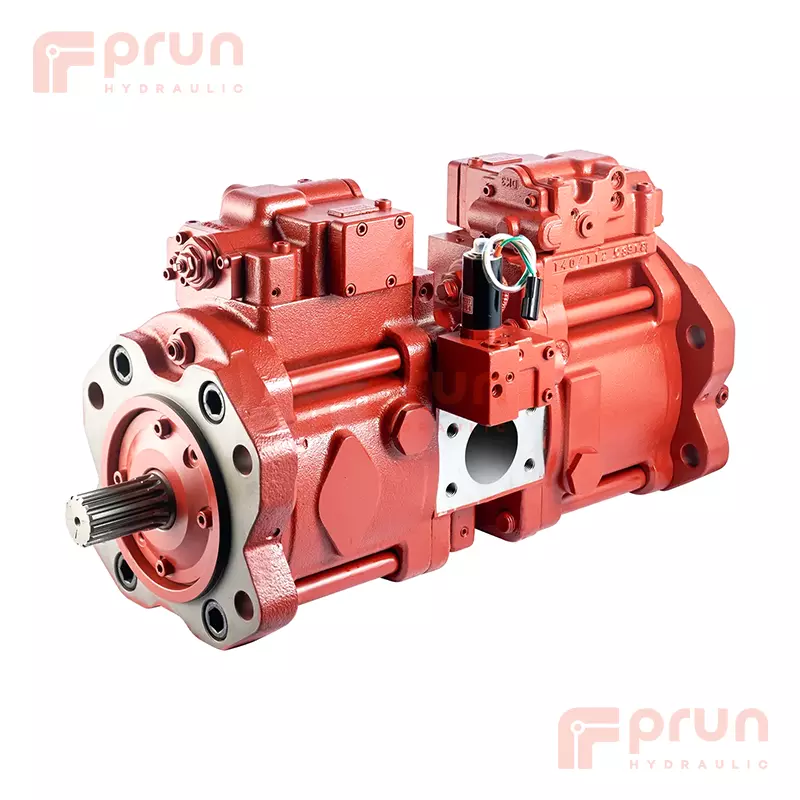

Kawasaki K3V63 K3V112 K3V140 K3V180 K3V200 K3V280 K5V80 K5V140 K5V160 K5V180 K5V200 K5V212 K3SP Main Pump
PUMP DETAILS:
K3V series and K5V series pumps are widely used in excavator equipment of major construction machinery manufacturers such as Hyundai, Volvo, Kobleco, JCB, Doosan, Sumitomo, SANY, XCMG, LiuGong, Zoomlion etc. A variety of rotating group layouts are available, providing Positive control, negative control, with PTO, without PTO and other options. All K3V Series and K5V Series pumps offered by Prun are complete replacements of original Kawasaki pumps and come with a 1 year warranty.
BENEFITS:
1, High power density
2, Strong self-priming ability
3, long life
4, low noise
5, Wide range of power, pressure and displacement controls available
6, Single, tandem and parallel versions
7, 350 bar continuous pressure rating
1. High Power Density A lighter and more compact machine with higher pressure rating and increased power density (output power/mass) was obtained by adopting a half log type swash plate. In particular, the double pump with its tandem arrangement, has eliminated a power divider, has an increased transmission efficiency, and is lighter. 2. High Efficiency and Large Self-Priming Capability The spherical valve plate and improved hydraulic balance provide stable cylinder rotation, thus achieving high efficiency even in a low-pressure and low-speed operating range. 3. Long Life A long life is obtained by adopting main bearings of large capacity and the piston-return mechanism that compensates for the wear of the shoe. 4. Low Noise Even less noise has been achieved because of the optimum design of the valve plate and the casing rigidity. 5. Wide Range of Controls The pump can be controlled in various kinds of control methods and is capable of responding to either mechanical, hydraulic or electrical input.
Applicable models：
K3V63DT-9N09(EC140) , K3V63DT-9POH, K3V63DT-HONE(DH150-7), K3V63DTP-9N14T(POT), K3V63DTP-9C22(JCB130), K3V63DT-9C22(R150-7), K3V63DT-9N3D-14(CAT312), K3V63(Wheel Excavator), K3V140DT-9N(EC290), K3V63DTP-OE02(SK135), K3V140DT-9T1L(SY285), K3V140DT-9TCM(SY285), K3V140DT-HNOV(DH300-5), K3V180DT-9C69-17T(R335-7), K3V180DTP(POT)(DX345), K3V180DTP-9N(PTO)(EC360 OLD VERSTION), K3V180DT-9N29(EC360), K3V180DTP-9C69-17T(PTO)(R375), K3V112DT-1E42(EC220D), K3V112DT-9C14, K3V112DTP-9N24-12T(DX225), K3V112DT-9C32-14T, K3V112DT-9N14, K3V112DTP-9C14(JIB220), K3V112DTP-9Y14-14, K3V112DTP-HNOV-14(PTO), K3V112DTP-OE11一14, K3V112DTP-YT6K-17T, K3V112S-1NCJ-12(SINGLE PUMP), K3V112DTP-9N14(DX260), K3V112DTP-9N14(SH200A3), K3V112DTP-9T8L-14, K3V112DTP-9TCM-14T, K3V112DTP-9TDL-14T, K3V112DTP-9TEL-14, K3V112DT-9C12, K3V112DT-9N14(Inverse Proportion), K3V112DT-HNOV-12, K3V112DT-HNOV-14T, K3V112DTP-9P12-12T, K3V112DTP-HNOV-14, K5V80DTP-HNOV(PTO)(DH150-7), K5V80DTP-9N61(R150-9), K5V80DTP-9N(PTO)(R150), K5V80DT-9N-12T(DX150), K5V80DTP-OE02-12T(PTO), K5V200DTH-SK450-6(OLD VERSTION), K5V140DT-9N01(LIUGONG933E), K5V140DT-1E05(EC250D), K5V140DTP-9T1L-17T(SY235-8), K5V140DTP-OE01-17T(SY235-9), K5V140DTP-YT6K-17T(SK350-8), K5V140DTP-9C12-17T(R305-7), K5V140DTP-9C12-17T(R305-7), K5V140DT-17T(SK350-6E), K5V160DTH-9N4A(XCMG370), K5V140DTP-9N01-17T(DX300), K5V160DT-1E06(EC300D-EC350D), K5V160DTH-9T16(SY335), K5V160DTH-OE30-17T, K5V200DTH-9NOB(EC460), K5V200DTP-9NOB(PTO)(DH500), K5V160DTP-9Y04-13T(SH350A5), K5V200DTH-9N4H(SY365), K5V200DTH-9COZ(R455), etc.
